金属丝平纹编织密纹网

当前位置：首页 > 产品中心 > 金属丝平纹编织密纹网

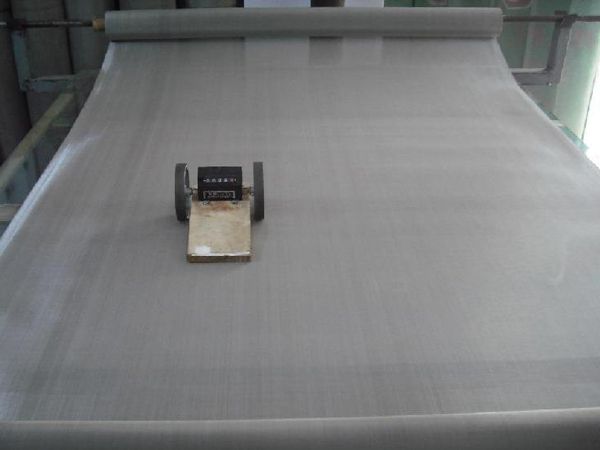

金属丝平纹编织密纹网

材质：不锈钢丝、镍丝、黄铜丝编织：金属丝编织密纹网中纬丝聚密排列，有平纹编织密纹网、斜纹编织密纹网、竹花编织密纹网、反差编织密纹网。性能：采用上等品质不锈钢丝编织而成。是经向、纬向丝径和密度有较大反差，因而网子厚度和过滤精度及使用寿命比方孔网有较明显的提高，它的过滤精度是方孔网布无法实现的。用途：主要用于气体、液体过滤和其它介质分离，应用于航天、石油、化工等行业。Material: Stainless Steel Wire , Nickel Wire , Brass WireWeaving : While the warp wires remain straight , the weft wires are plain woven as close as possible against each other which forming a dense strong material with twisting passageways . Plain weave dense wire mesh , twill weave dense wire mesh , bamboo weaving dense wire mesh and contrast woven dense wire mesh .Characteristic : Using the high quality stainless steel wire woven . Due to the warp , weft wire diameter and density have the greater contrast ,thus the net thickness ,filtration accuracy and the service life has been significantly improved. Its filtration accuracy can not be achieved by a square hole mesh .Main applications : Widely used for gas , liquid filter and other medium separation. Applied in aerospace ,petroleum and chemical 型号规格名义孔径尺寸µm有效截面率%网重Kg/m2网厚mm对应旧标准网号MPW23118×740/0.063×0.0362321.50.380.135465MPW23100×1200/0.063×0.02337.60.270.109400MPW3280×400/0.125×0.0633216.60.770.251315MPW3570×340/0.125×0.083513.20.860.285280 ⅠMPW3665×770/0.10×0.0363637.10.430.172256MPW3770×390/0.112×0.0713716.30.740.254280 ⅡMPW3780×620/0.10×0.04529.80.530.19315MPW3877×560/0.14×0.053827.50.740.24300MPW3960×270/0.14×0.103911.21.030.34240MPW4080×700/0.125×0.044038.10.600.205315MPW4160×300/0.14×0.094114.10.960.32240MPW4265×400/0.125×0.0714219.10.780.267256MPW3070×930/0.10×0.033036.20.390.16280MPW5050×270/0.14×0.105015.20.980.34200MPW5160×500/0.14×0.0565134.10.700.252240MPW5550×280/0.16×0.095520.00.980.34200MPW5645×250/0.16×0.1125615.21.110.384180MPW6340×200/0.18×0.1256315.41.240.43160MPW6935×170/0.224×0.166912.81.620.544140MPW7435×190/0.224×0.147416.81.470.504MPW7730×140/0.315×0.207711.42.210.715120MPW8230×150/0.25×0.188213.51.790.61MPW9228×150/0.28×0.189215.91.870.64110MPW9724×110/0.355×0.259711.32.600.85594MPW10025×140/0.28×0.2010015.21.960.68100MPW11522×120/0.315×0.22411515.52.200.76390MPW12620×110/0.355×0.2512615.32.470.855MPW13020×160/0.25×0.1613028.91.560.5779MPW13320×140/0.315×0.2013321.51.970.715MPW14516×120/0.28×0.22414519.20.72863MPW15517.2×120/0.355×0.22415522.42.190.80368MPW16016×100/0.40×0.2816017.72.700.9660MPW17314×76/0.45×0.35517314.33.331.16MPW17714×110/0.355×0.2517722.22.280.85555MPW18214×100/0.40×0.2818220.32.620.96MPW19212.7×76/0.45×0.35519215.93.261.1650MPW21112×64/0.56×0.4021116.03.891.3647MPW21112×86/0.45×0.31520.92.931.08MPW24810×76/0.50×0.35524821.83.241.2140MPW24910×90/0.45×0.2824929.22.571.01MPW2758×85/0.45×0.31527527.32.731.0831MPW2968.5×60/0.63×0.4529620.34.161.5332MPW3108×45/0.80×0.6031015.55.702.0031MPW3197.2×44/0.71×0.6331914.25.551.9728MPW3477×40/0.90×0.7134714.36.652.3227

价格合理

品质优良

种类齐全

品质服务

24小时咨询热线：

139-3734-5906

产品分类

全国服务热线

139-3734-5906

新乡市蘑菇视频官网金属网有限公司

联系人：韩经理

电话：13937345906

邮箱：xxznjsw@163.com

地址：河南省新乡市新东产业集聚区道清路12号

材质：不锈钢丝、镍丝、黄铜丝
编织：金属丝编织密纹网中纬丝聚密排列，有平纹编织密纹网、斜纹编织密纹网、竹花编织密纹网、反差编织密纹网。
性能：采用上等品质不锈钢丝编织而成。是经向、纬向丝径和密度有较大反差，因而网子厚度和过滤精度及使用寿命比方孔网有较明显的提高，它的过滤精度是方孔网布无法实现的。
用途：主要用于气体、液体过滤和其它介质分离，应用于航天、石油、化工等行业。

Material: Stainless Steel Wire , Nickel Wire , Brass Wire
Weaving : While the warp wires remain straight , the weft wires are plain woven as close as possible against each other which forming a dense strong material with twisting passageways . Plain weave dense wire mesh , twill weave dense wire mesh , bamboo weaving dense wire mesh and contrast woven dense wire mesh .
Characteristic : Using the high quality stainless steel wire woven . Due to the warp , weft wire diameter and density have the greater contrast ,thus the net thickness ,filtration accuracy and the service life has been significantly improved. Its filtration accuracy can not be achieved by a square hole mesh .
Main applications : Widely used for gas , liquid filter and other medium separation. Applied in aerospace ,petroleum and chemical

型号	规格	名义孔径尺寸µm	有效截面率%	网重Kg/m²	网厚mm	对应旧标准网号
MPW23	118×740/0.063×0.036	23	21.5	0.38	0.135	465
MPW23	100×1200/0.063×0.023	23	37.6	0.27	0.109	400
MPW32	80×400/0.125×0.063	32	16.6	0.77	0.251	315
MPW35	70×340/0.125×0.08	35	13.2	0.86	0.285	280 Ⅰ
MPW36	65×770/0.10×0.036	36	37.1	0.43	0.172	256
MPW37	70×390/0.112×0.071	37	16.3	0.74	0.254	280 Ⅱ
MPW37	80×620/0.10×0.045	37	29.8	0.53	0.19	315
MPW38	77×560/0.14×0.05	38	27.5	0.74	0.24	300
MPW39	60×270/0.14×0.10	39	11.2	1.03	0.34	240
MPW40	80×700/0.125×0.04	40	38.1	0.60	0.205	315
MPW41	60×300/0.14×0.09	41	14.1	0.96	0.32	240
MPW42	65×400/0.125×0.071	42	19.1	0.78	0.267	256
MPW30	70×930/0.10×0.03	30	36.2	0.39	0.16	280
MPW50	50×270/0.14×0.10	50	15.2	0.98	0.34	200
MPW51	60×500/0.14×0.056	51	34.1	0.70	0.252	240
MPW55	50×280/0.16×0.09	55	20.0	0.98	0.34	200
MPW56	45×250/0.16×0.112	56	15.2	1.11	0.384	180
MPW63	40×200/0.18×0.125	63	15.4	1.24	0.43	160
MPW69	35×170/0.224×0.16	69	12.8	1.62	0.544	140
MPW74	35×190/0.224×0.14	74	16.8	1.47	0.504	140
MPW77	30×140/0.315×0.20	77	11.4	2.21	0.715	120
MPW82	30×150/0.25×0.18	82	13.5	1.79	0.61	120
MPW92	28×150/0.28×0.18	92	15.9	1.87	0.64	110
MPW97	24×110/0.355×0.25	97	11.3	2.60	0.855	94
MPW100	25×140/0.28×0.20	100	15.2	1.96	0.68	100
MPW115	22×120/0.315×0.224	115	15.5	2.20	0.763	90
MPW126	20×110/0.355×0.25	126	15.3	2.47	0.855	90
MPW130	20×160/0.25×0.16	130	28.9	1.56	0.57	79
MPW133	20×140/0.315×0.20	133	21.5	1.97	0.715	79
MPW145	16×120/0.28×0.224	145	19.2	1.97	0.728	63
MPW155	17.2×120/0.355×0.224	155	22.4	2.19	0.803	68
MPW160	16×100/0.40×0.28	160	17.7	2.70	0.96	60
MPW173	14×76/0.45×0.355	173	14.3	3.33	1.16	60
MPW177	14×110/0.355×0.25	177	22.2	2.28	0.855	55
MPW182	14×100/0.40×0.28	182	20.3	2.62	0.96	55
MPW192	12.7×76/0.45×0.355	192	15.9	3.26	1.16	50
MPW211	12×64/0.56×0.40	211	16.0	3.89	1.36	47
MPW211	12×86/0.45×0.315	211	20.9	2.93	1.08	47
MPW248	10×76/0.50×0.355	248	21.8	3.24	1.21	40
MPW249	10×90/0.45×0.28	249	29.2	2.57	1.01	40
MPW275	8×85/0.45×0.315	275	27.3	2.73	1.08	31
MPW296	8.5×60/0.63×0.45	296	20.3	4.16	1.53	32
MPW310	8×45/0.80×0.60	310	15.5	5.70	2.00	31
MPW319	7.2×44/0.71×0.63	319	14.2	5.55	1.97	28
MPW347	7×40/0.90×0.71	347	14.3	6.65	2.32	27
